Specification:

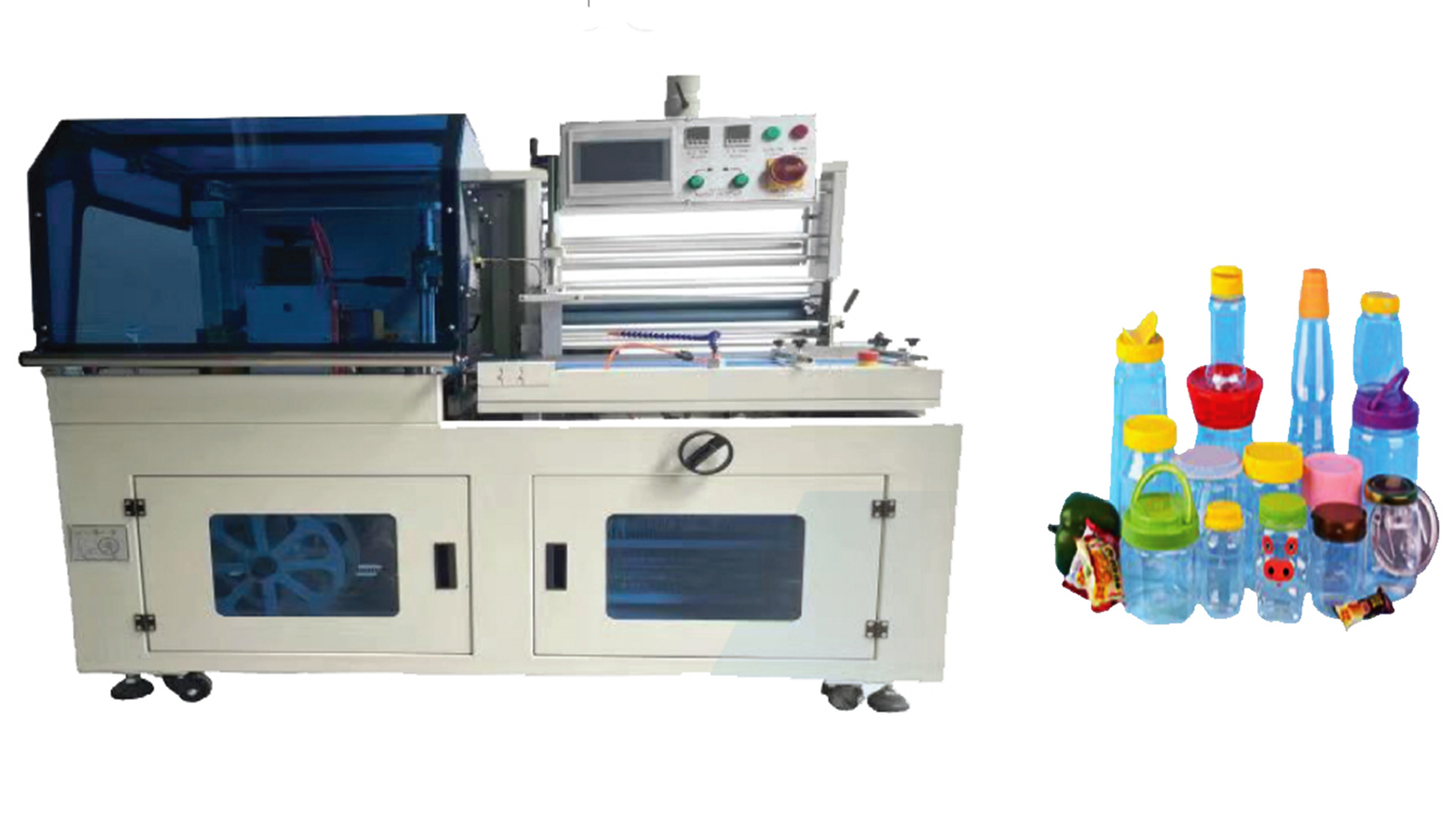

This machine first organizes bagged or boxed products into a standing position through a multi-page sorting mechanism, and then uses a cylinder or servo to push the products into the sealing and cutting machine to seal and cut the products. The sorting mechanism is closely connected with the sealing and cutting machine to ensure that there will be no big gaps in the bag after the product is wrapped, saving film, and the packaging effect is beautiful and convenient for transportation.
Model
WWP-50HZ Packing size Length is not limited, W + H ≤ 400mm, H≤ 200mm. Specific details of non-standard are subject to actual conditions. Packing speed 1-8pcs/min depending on product size Net weight 400kg Power 4KW Power supply 380V 50/60HZ Max current 10A Air pressure 6-8KG/cm2 Table Height 820+20MM
Standard components:
Motor: Zhongda
Belt: PU belt
PLC: INOVANCE
Contactor: SCHNEIDER (French)
Intermediate relay: IDEC (Japan)
Touch screen: MCGS 7-inch 65000 color screen
Thermostat: OMRON (Japan)
Emergency switch: IDEC (Japan)
Sensor switch: SICK (German)
